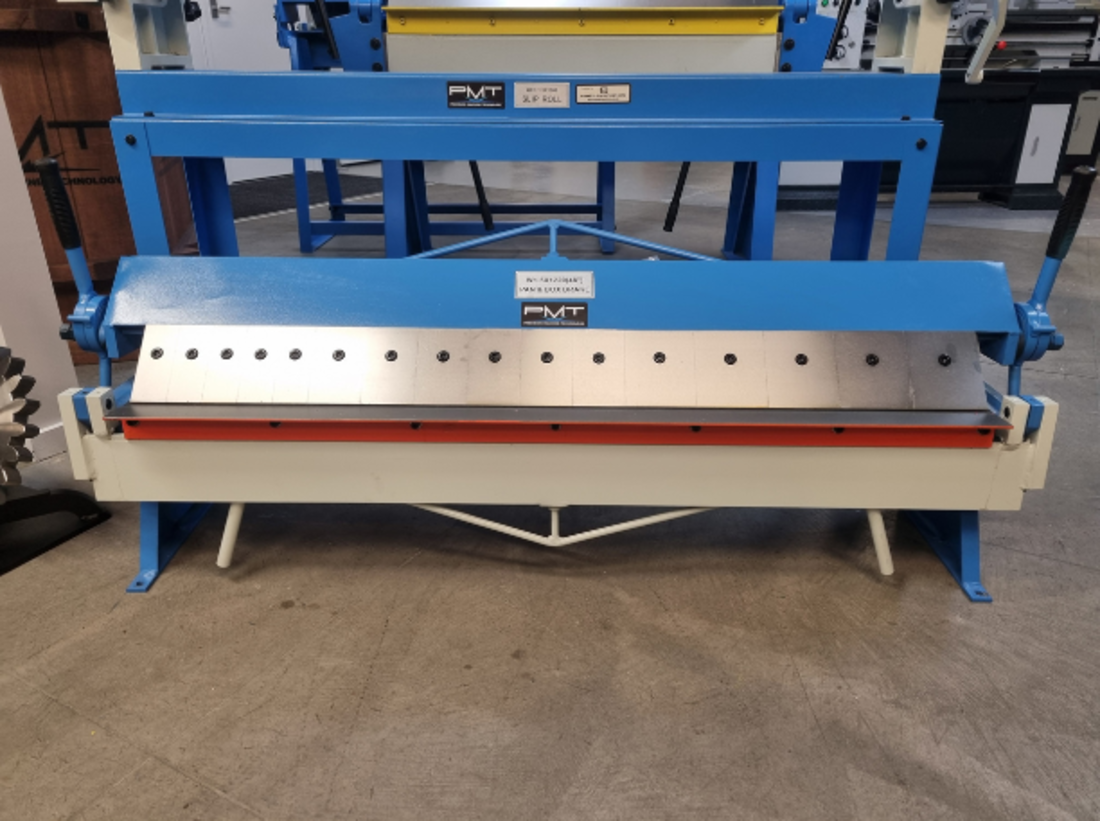

The W1.5×1220 Box Pan Folder is a bench mount manual sheet metal folding machine designed for producing straight bends, boxes, pans, channels, and other formed sheet-metal components.
BPF-1.5x1220
Fabrication Machinery
| Model: | W1.5x1220 |
| Machine Type: | Manual Box Pan Folder |
| Material Capacity (Mild Steel): | 1.5mm |
| Bending Length: | 1220mm |
| Bending Angle: | 0-135° |
| Clamping Type: | Manual |
| Finger Type: | Removable Segmented Fingers |
| Construction: | Heavy-Duty Steel Frame |
| Operation: | Manual |
| Machine Dimensions: | 400 x 620 x 1500mm |
| Net Weight: | 135kg |
| Gross Weight: | 151kg |
The W1.5×1220 Box Pan Folder is a bench mount manual sheet metal folding machine designed for producing straight bends, boxes, pans, channels, and other formed sheet-metal components. Featuring removable finger segments, the machine allows complex bends that cannot be achieved with a standard straight brake. Its compact design, robust steel construction, and simple manual operation make it ideal for fabrication workshops, HVAC work, roofing, maintenance departments, and general sheet-metal manufacturing. The segmented clamping fingers provide flexibility for box and tray fabrication while maintaining accurate and repeatable bends.
