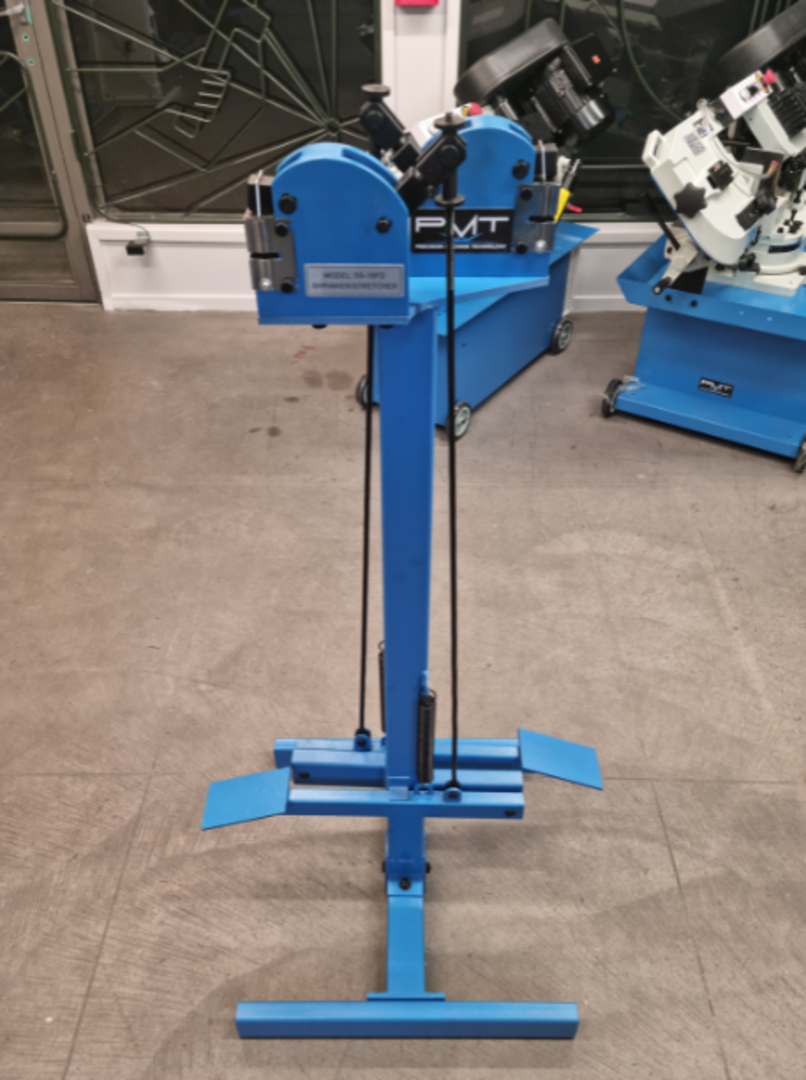

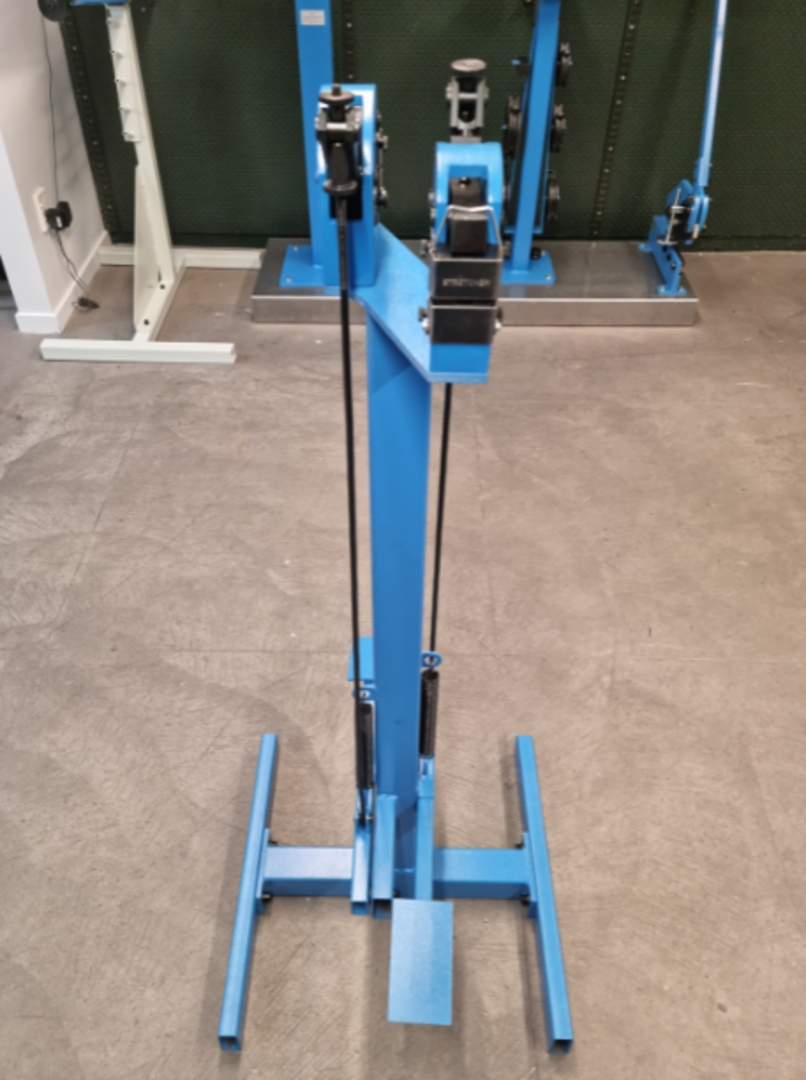

The SS-18FD is a heavy-duty manual metal shrinker and stretcher designed for shaping and forming sheet metal into curved, contoured, and complex profiles.
SS-18FD
Fabrication Machinery
| Model: | SS-18FD |
| Machine Type: | Manual Metal Shrinker & Stetcher |
| Operation: | Foot Pedal Operated |
| Material Capacity (Mild Steel): | 1.2mm |
| Material Capacity (Aluminium/Copper): | 1.5mm |
| Material Capacity (Stainless Steel): | 0.9mm |
| Throat Depth: | 25.4mm (1") |

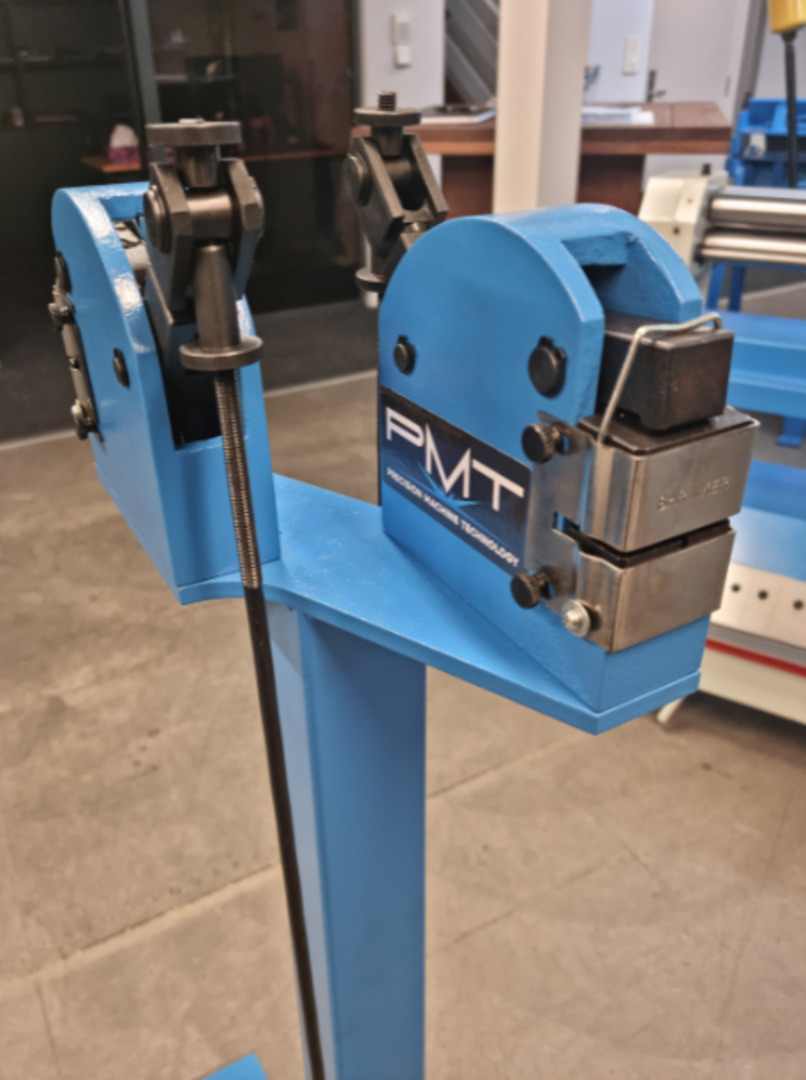

| Jaw Type: | Separate Shrinking and Stretching Jaws |
| Construction: | Heavy-Duty Steel / Cast Iron |
| Machine Dimensions: | 520 x 630 x 1280mm |
| Net Weight: | 24kg |
| Gross Weight: | 26kg |
The SS-18FD is a heavy-duty manual metal shrinker and stretcher designed for shaping and forming sheet metal into curved, contoured, and complex profiles. Featuring dual shrinking and stretching jaws operated by foot pedals, the machine allows hands-free control of the workpiece for improved accuracy and efficiency. Commonly used in automotive panel fabrication, restoration work, architectural sheet metal, roofing, and custom metal forming, this free standing machine provides a simple and effective method for creating inside and outside radii without heat or extensive hammer forming.
