Box Pan Folder BP-1648H

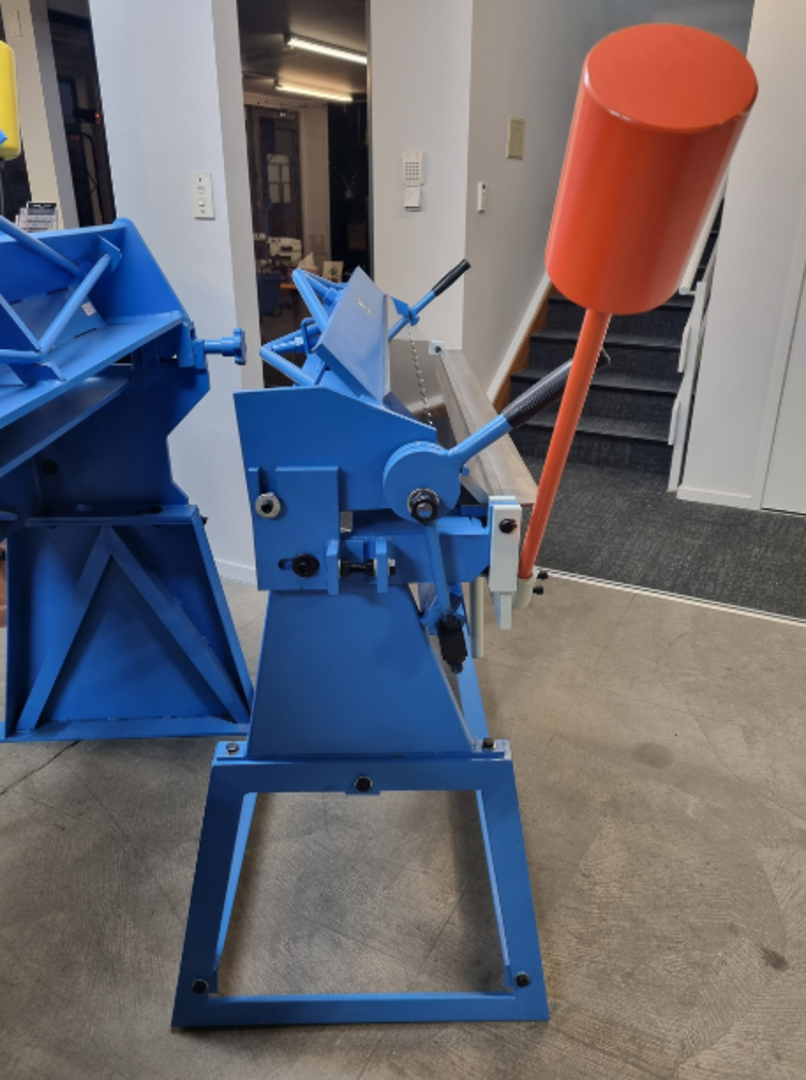

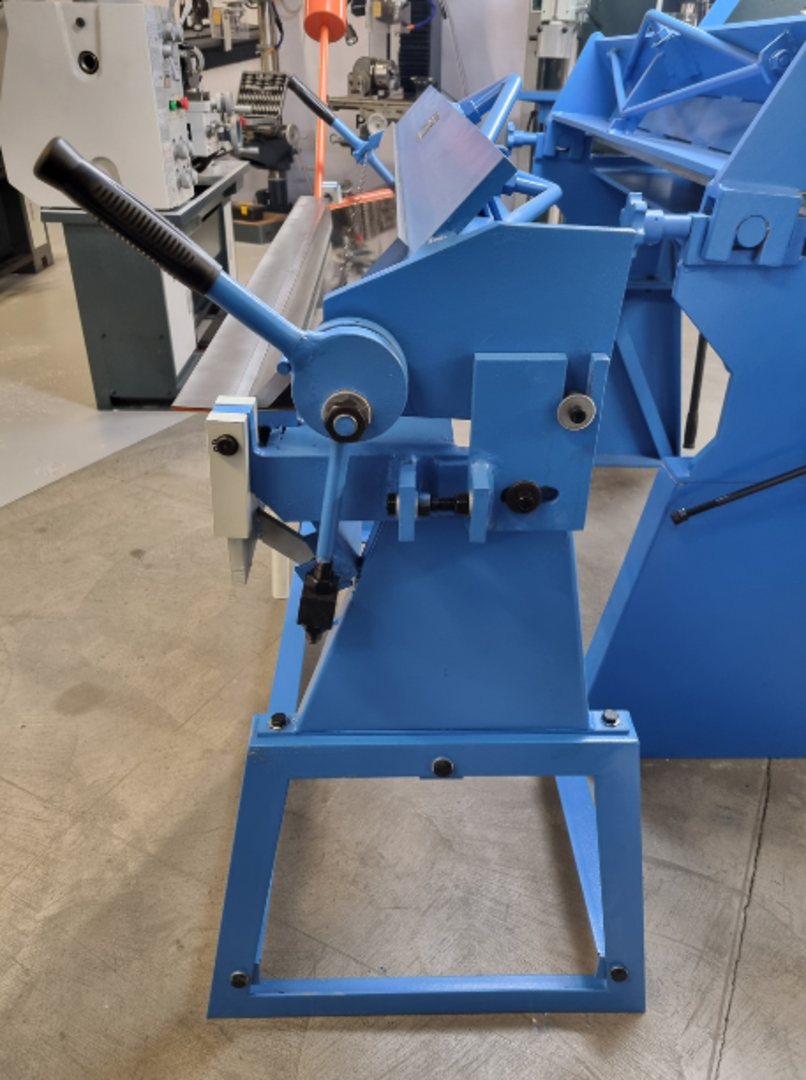

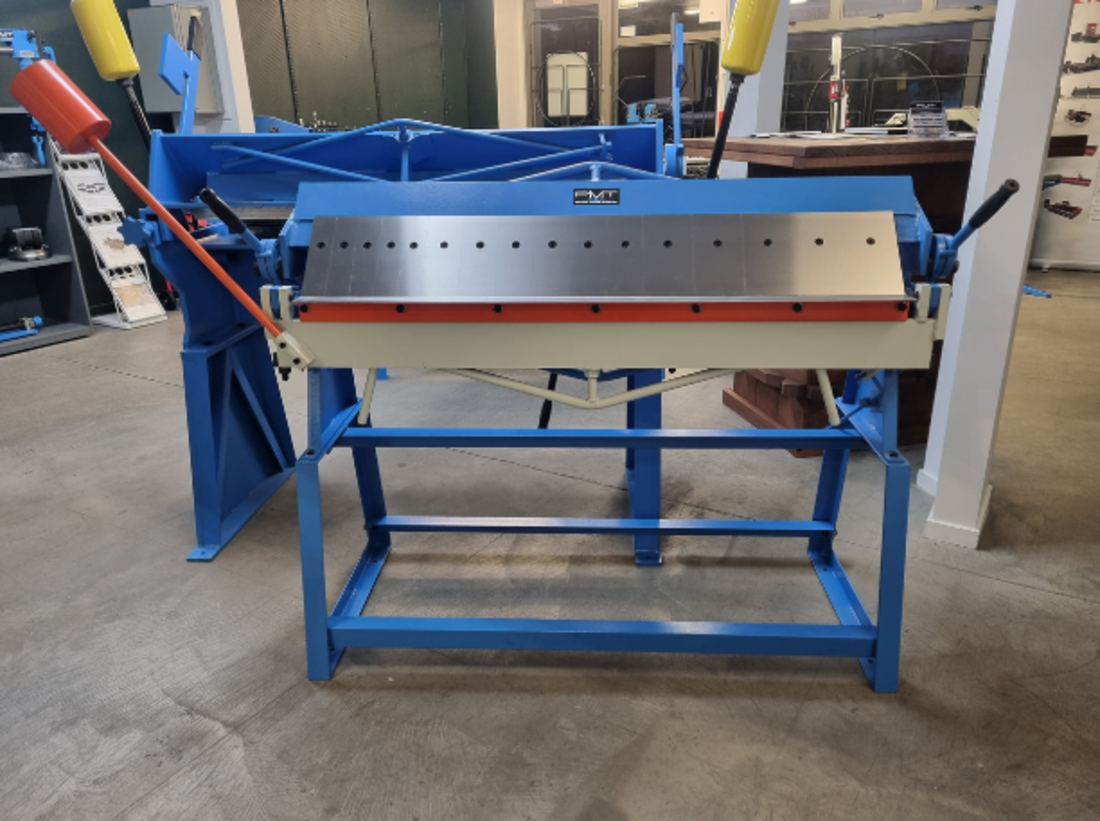

The BP-1648H is a heavy-duty free-standing manual pan and box brake, designed for precision bending and forming of sheet metal.
BPFS-1.5x1220HB
Fabrication Machinery
06 322 1575
Specifications
| Model: | BP-1648H |
| Machine Type: | Manual Box Pan Folder |
| Bending Capacity (Mild Steel): | 1.5mm |
| Bending Length Capacity: | 1220mm |
| Maximum Box Depth: | 102mm |
| Maximum Beam Lift: | 48mm |
| Bending Angle: | 0-135° |
| Beam Adjustment (Front to Rear): | 6.5mm |
| Finger Configuration: | 16 Assorted Removable Fingers |
| Finger Sizes: | 5 x 2", 6 x 3" , 5 x 4" |
| Construction: | Heavy-Duty Steel |
| Operation: | Manual |
| Overall Dimensions: | 1850 x 1320 x 600mm |
| Net Weight: | 195kg |
| Shipping Weight: | 230kg |
Description
The BP-1648H is a heavy-duty free-standing manual pan and box brake, designed for precision bending and forming of sheet metal. Featuring removable 198mm high finger segments, the machine enables the production of boxes, trays, channels, pans, and other complex folded components that cannot be formed on a standard straight brake. Its steel construction provides excellent rigidity and accuracy, making it ideal for fabrication workshops, HVAC manufacturing, maintenance departments, and general sheet-metal applications.
Standard Features

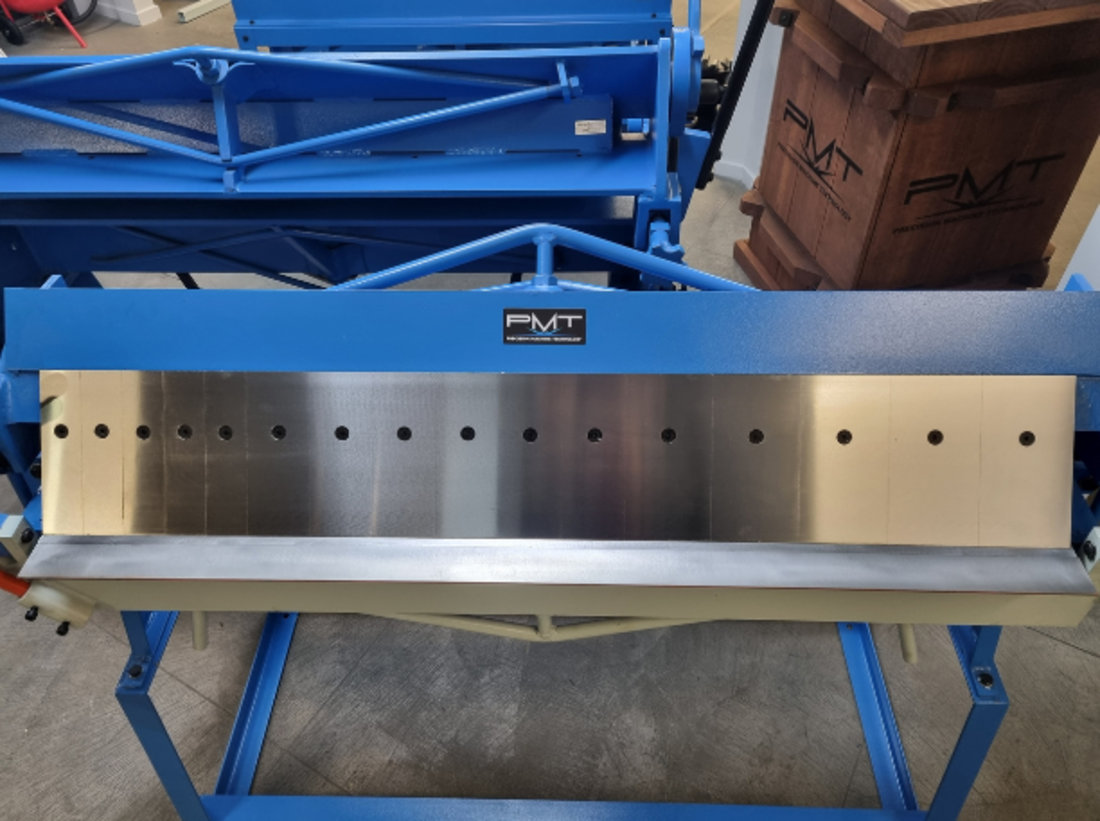

- Removable 198mm high finger segments for box and pan fabrication
- Full-length nose bar capability when fingers are installed
- Heavy-duty construction for workshop and production use
- Adjustable beam clearance for different material thickness
- Stop rod for repeatable bending operations
- Precision-aligned clamping beam
- Suitable for mild steel, aluminium, copper, brass, and similar sheet metals
- Low-maintenance manual operation
- Designed for accurate, repeatable bends and formed components
Typical Applications
- Sheet-metal boxes and trays
- Electrical and control enclosures
- HVAC ductwork and fittings
- Flashings and roofing components
- Automotive and restoration work
- General fabrication and maintenance workshops
