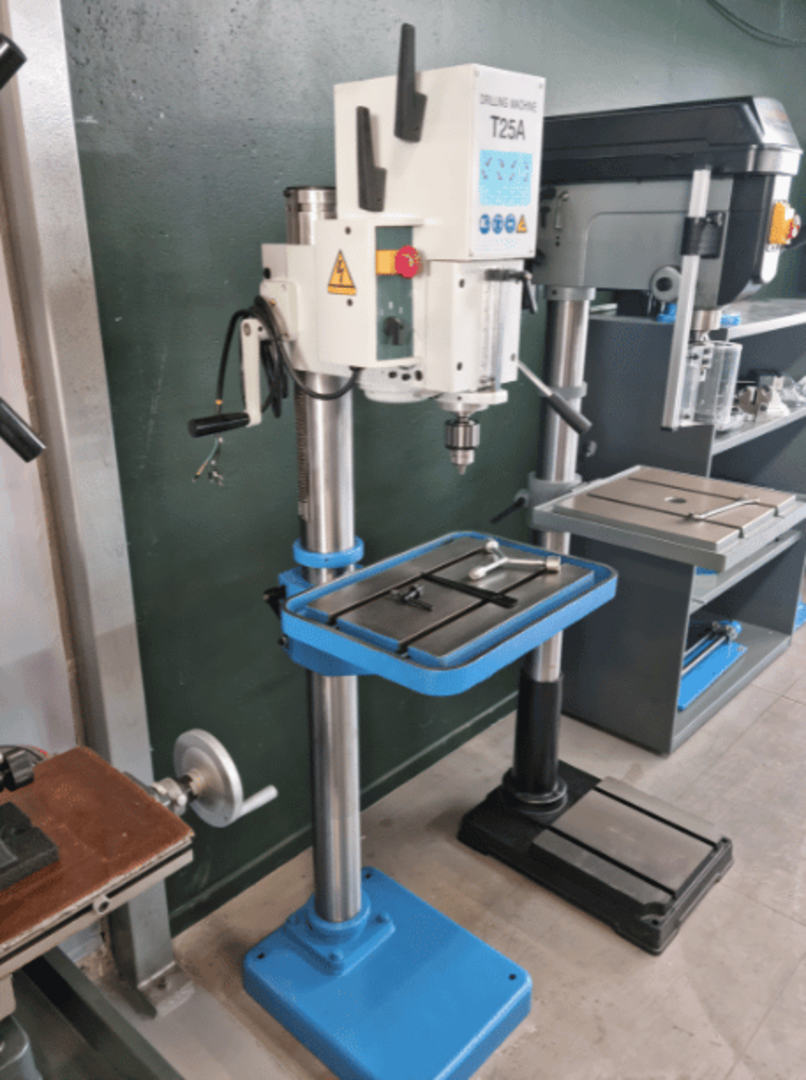

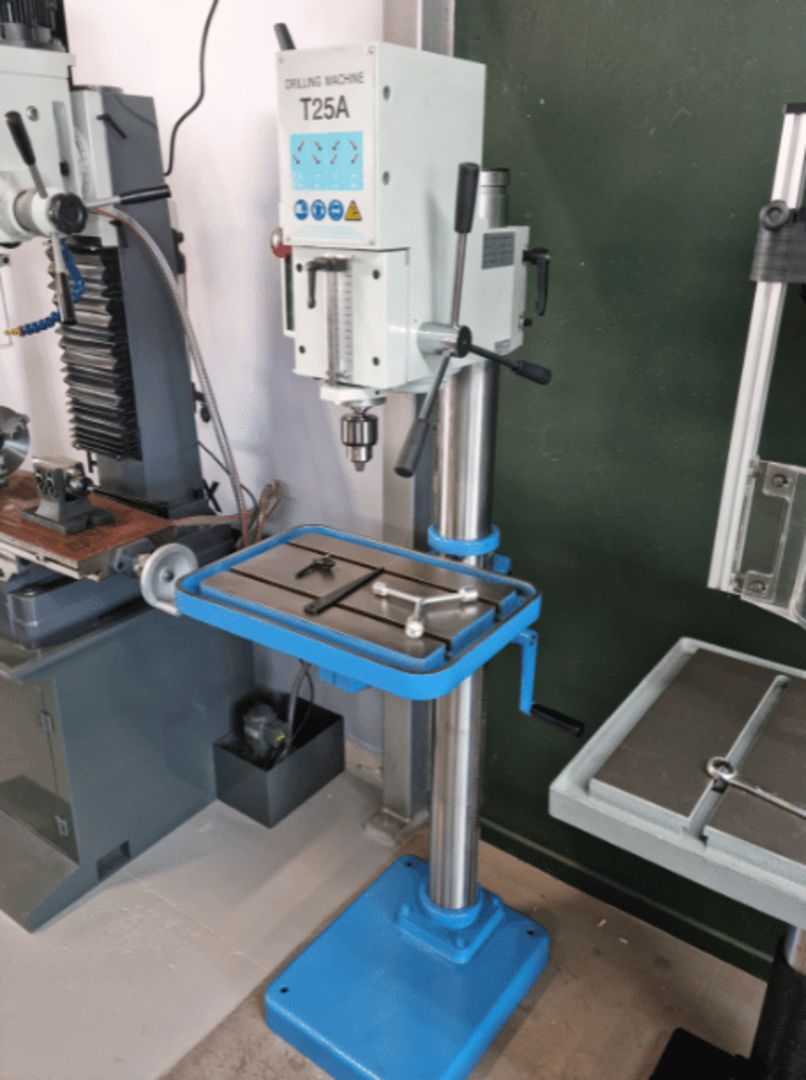

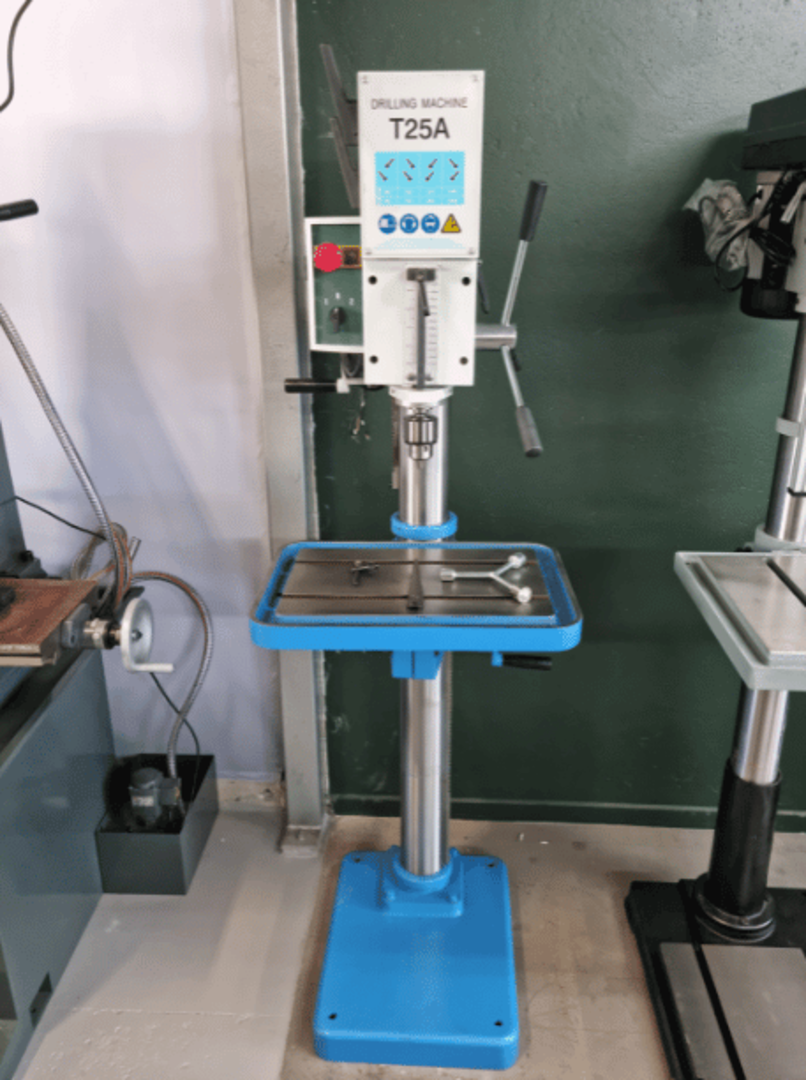

The T-25 Drill Press is a robust, industrial, vertical head drilling machine designed for accurate and repeatable hole drilling in a wide range of materials.
DP-T25A
Drills/Mills
| Maximum Drilling Capacity: | Ø25mm |
| Spindle Taper: | MT3 (Morse Taper 3) |
| Spindle Travel: | 125mm |
| Spindle Speeds: | 8 speed, Hi/Low Motor Speed |
| Speed Range: | 105-2900 rpm |
| Motor Power: | 2 speed, 0.65kW/0.9kW |
| Power Supply: | 415V Three Phase |
| Table Size: | 350mm x 500mm |
| Weight: | 200kg |

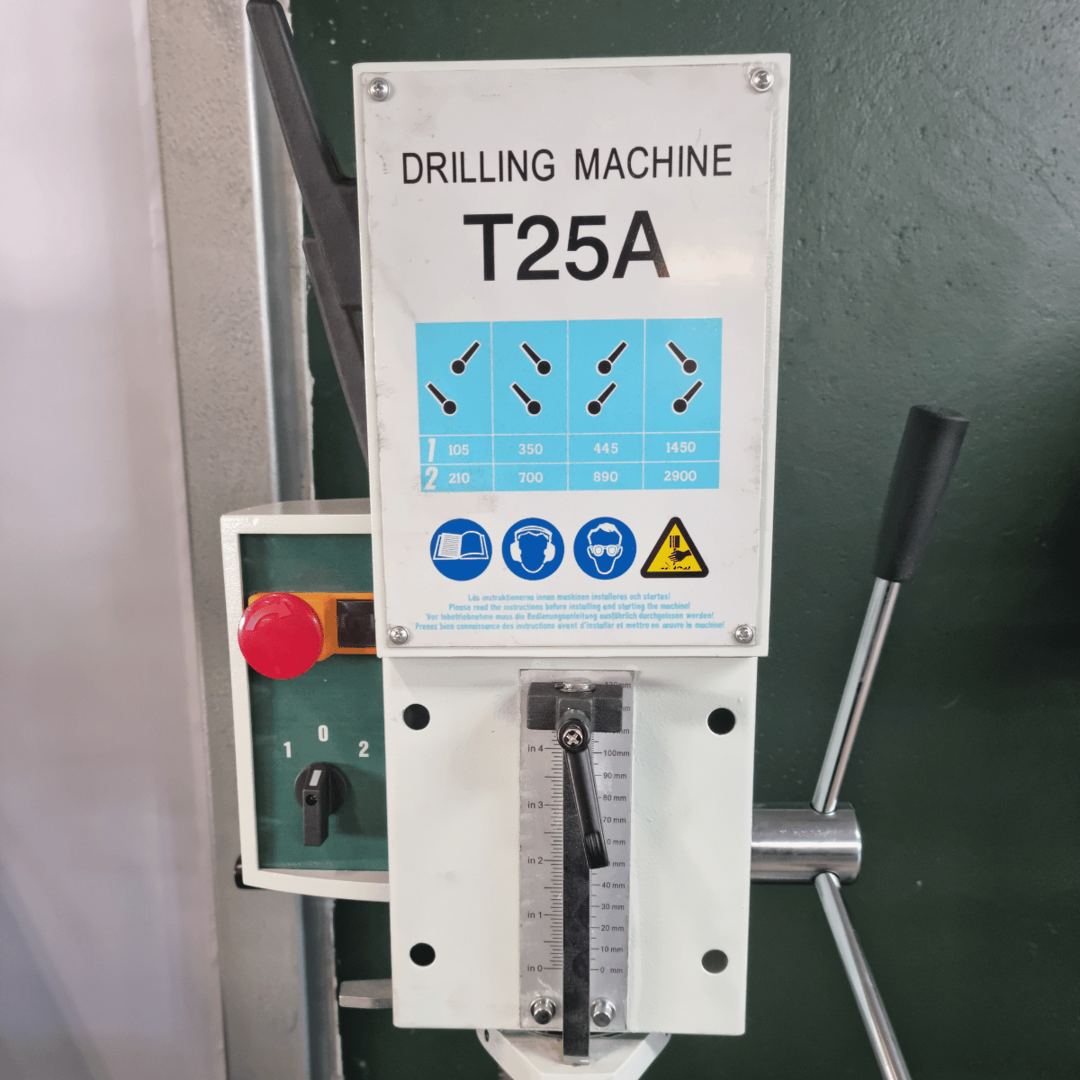

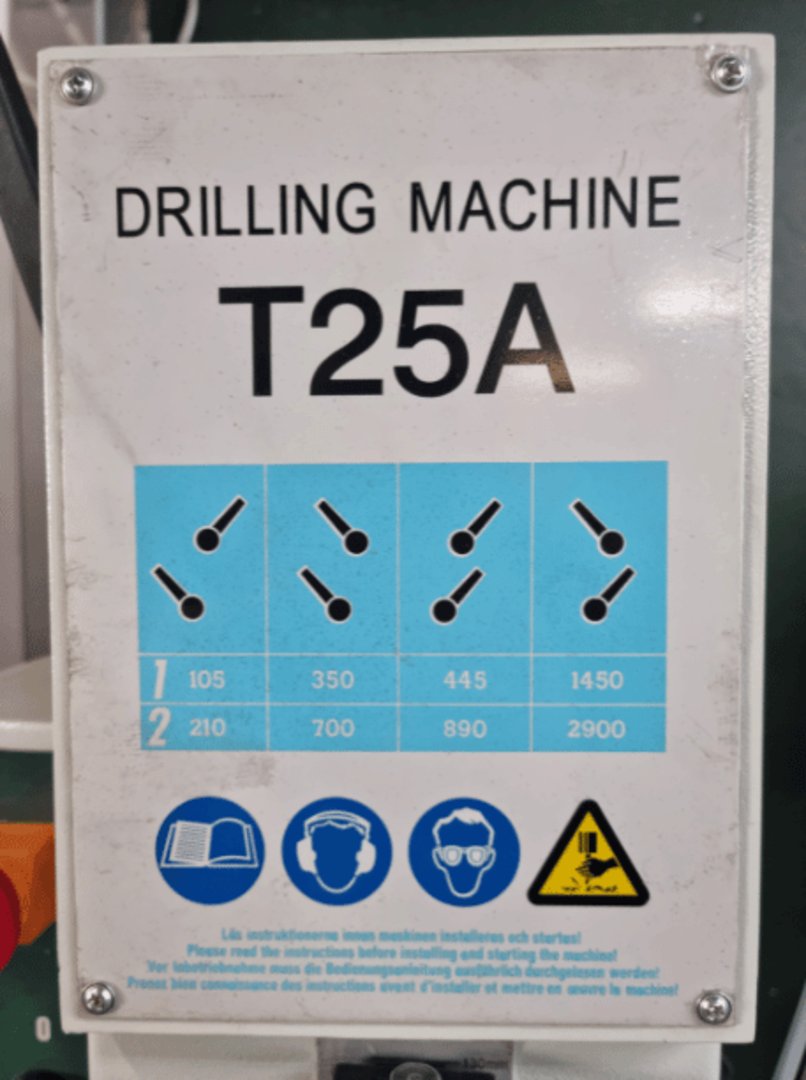

The T-25 Drill Press is a robust, industrial, vertical head drilling machine designed for accurate and repeatable hole drilling in a wide range of materials. With a MT 3 gear driven head and drilling capacity of up to 25mm, it is well suited for workshop and fabrication applications. The gear driven head provides smooth quiet operation for the higher load jobs with no slipping. Speed adjustments are made easy with external lever operation, while T-slots on the large cast iron adjustable worktable give the perfect platform to fix materials and jigs to while drilling.
