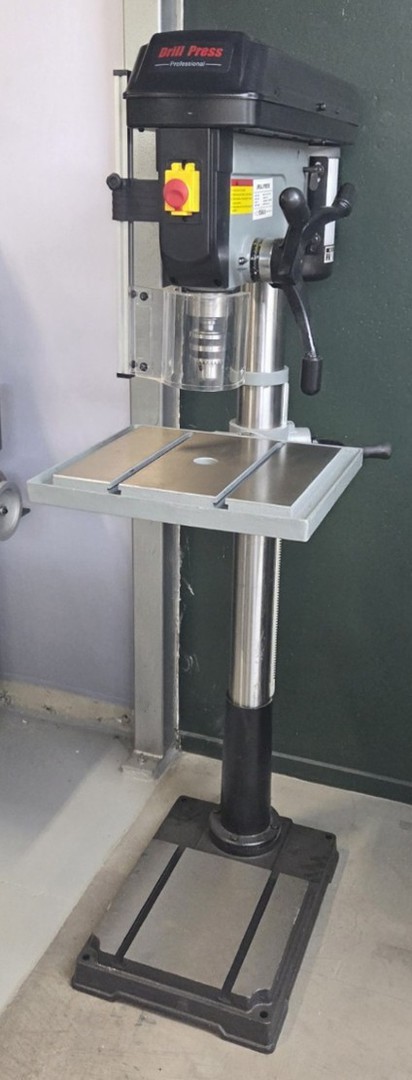

The WD-32 Drill Press is a robust, belt-driven column drilling machine designed for accurate and reliable hole-making in a range of materials, including steel, aluminium, and plastics.
DP-WD32
Drills/Mills
| Maximum Drilling Capacity: | Ø32mm |
| Spindle Taper: | MT 3 |
| Spindle Travel: | 120mm |
| Throat Depth: | 255mm |
| Spindle Speeds: | 12 |
| Speed Range: | 150 - 2450rpm |
| Motor Power: | 1.1kW |
| Power Supply: | 240V, 1 Phase |
| Column Diameter: | 92mm |
| Table Size: | 415mm x 470mm |
| Base Size: | 425mm x 570mm |
The WD-32 Drill Press is a robust, belt-driven column drilling machine designed for accurate and reliable hole-making in a range of materials, including steel, aluminium, and plastics. With a maximum drilling capacity of up to 32 mm, it is well suited for medium-duty workshop and fabrication applications. The belt-driven system provides smooth, quiet operation with multiple speed options for different materials and cutting conditions. Featuring a rigid cast iron construction, adjustable worktable, and straightforward controls, the WD-32 delivers consistent performance and precision in general engineering environments.
